API Tubular Handling Tools LF Type Manual Tong Changing Lug Jaws Drilling And Well Tools
Type "LF" Tong is designed for water well drilling, seismographic, mining and geothermal rigs. Made from alloy steel, heat treated and magnetic partical inspected. Sizes range from 2 3/8" through 7 1/4" OD. An additional hinge jaw is available for pipe sizes from 7 1/4" to 8 5/8" OD. All steel specifications are certified.
Manual Tongs Type LF Datasheet of Tubular Handing Tools
| No. of Latch Lug Jaw | Latch Step | Size range | Rated Torque (kN.m) |
| in | mm |
| 1# | 1 | 2-3/8~2-7/8 | 60.32~73 | 22 |
| 2 | 2-7/8~3-1/2 | 73~88.9 |
| 2# | 1 | 3-1/2~4-1/4 | 88.9~107.95 |
| 2 | 4-1/4~5 | 107.95~127 |
| 3# | 1 | 4-3/4~5-1/2 | 120.65~139.7 |
| 2 | 5-1/2~6-1/4 | 139.7~158.75 |
| 4# | 1 | 5-3/4~6-3/8 | 146.05~161.93 |
| 2 | 6-3/8~7 | 161.93~177.8 |

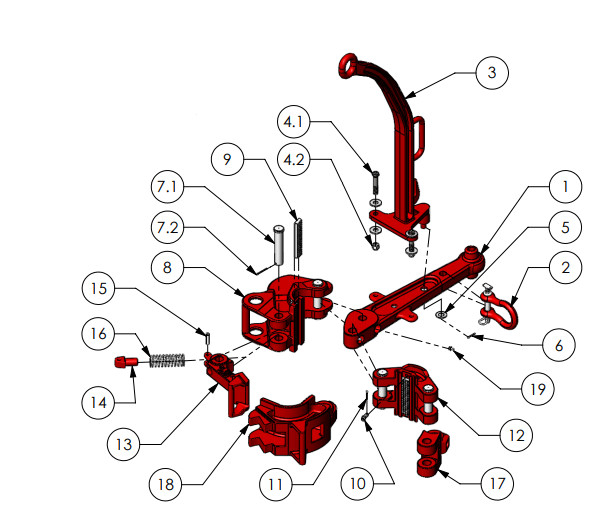

Spare Parts for Manual Tongs Type LF
| ITEM NO. | DESCRIPTION | PART NO. | WEIGHT
EACH
(lbs) |
| -- | TYPE LF TONG COMPLETE - LESS LUG JAWS | 80121 | 107.0 |
| －－ | LEVER ASSEMBLY | 80908-1 | 31.0 |
| 1 | LEVER | 80908 | 26.0 |
| 2 | CLEVIS ASSEMBLY EMBLY | 45711 | 2.0 |
| －－ | HANGER ASSEMBLY | 80916-1 | 20.0 |
| 3 | HANGER | 80916 | 15.0 |
| 4 | HANGER BOLT & NUT | -- | 1.0 |
| 4.1 | BOLT | 1408C-22-5 | |
| 4.2 | LOCKNUT | 6608C-00-5 | |
| 5 | FLAT WASHER | 22080-00-0 | |
| 6 | COTTER PIN | 30020-08-0 | |
| 7 | HINGE PIN 1" Dia w/COTTER PIN | 80921 | 1.0 |
| 7.1 | HINGE PIN | 80921-1 | |
| 7.2 | COTTER PIN | 30AB0-12-0 | |
| -- | LONG JAW ASSEMBLY - INCLUDES ITEMS 8,
9 , 10 , 11 | 80909-1 | 27.0 |
| 8 | LONG JAW | 80909 | 26.0 |
| 9 | TONG DIE | 80401 | 1.0 |
| 10 | CLEVIS PIN | 55060-06-0* | 0.1 |
| 11 | COTTER PIN | 30020-08-0 | |
| -- | SHORT JAW ASSEMBLY - INCLUDES ITEMS
12 , 9 , 10 , 11 | 80910-1 | 15.0 |
| 12 | SHORT JAW | 80910 | 14.0 |
| -- | LATCH ASSEMBLY | 80914-1 | 9.0 |
| 13 | LATCH | 80914 | 9.0 |
| 14 | LATCH SPRING PLUNGER | 80915 | 0.5 |
| 15 | LATCH SPRING PLUNGER PIN | 40060-12-0 | 0.1 |
| 16 | LATCHSPRING | 80920 | 0.1 |
| 17 | HINGE FOR 80931 LUG JAW | 80932 | 10.0 |
| 18 | LUG JAW 2 3/8" TO 3 1/2" | 80911 | 12.0 |
| LUG JAW 3 1/2" TO 5 3/8" | 80912 | 15.0 |
| LUG JAW 4 3/4" TO 6 1/4" | 80913 | |
| LUG JAW 5 3/4" TO 7 1/4" | 80930 | 35.0 |
| LUG JAW 7 1/4" TO 8 5/8" | 80931 | |
| -- | LUG JAW 7 1/4" TO 8 5/8" w/HINGE | 80931-1 | 56.0 |
| 19 | GREASE FITTINGS | 940308-1 | 0.1 |
