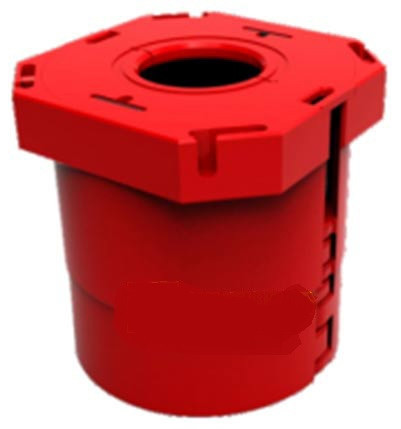

API 7K Power Slip Tubular Handing Tools Wellhead Automation Pneumatic Slip
● Safe and reliable: the use of one crane and one card to lift off the drill operation fundamentally avoids the occurrence of a single hoist ring accident in the operation of double elevators.
● Simple operation: realizing the control in the driller's room, saving the time of starting and lowering the casing or casing string.
● Strong applicability: different configurations can be used according to the scene;
● Air blowing and mud removal function: the air blowing function can be added as needed to ensure the cleanliness of the wellhead during the drilling process;
● Provide anti-torque: According to different models of hydraulic slip, the anti-torque can be provided is 20kN.m, 55kN.m, 75kN+m. The slipped kava can tighten the column, eliminating the need to use back pliers during the upper shackle process.
| Project | Specification model |

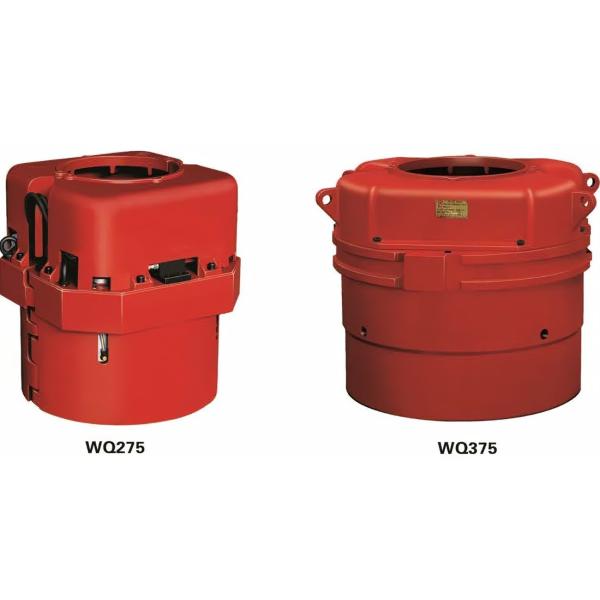

| WQ 275 I | WQ 275 II | WQ 375 II | WQ 375 III |
| Applicable turntable (in) | 27.1/2 | 27.1/2 | 37.1/2 | 37.1/2 |
| Applicable pipe diameter (n) | 2.3/8~ 9.7/8 | 2.3/8~ 9.7/8 | 2.3/8~14 | 2.3/8~14 |
| Maximum working load (tons) | 250 | 350 | 500 | 500 |
| Maximum working load (kN) | 2224 | 3114 | 4448 | 4448 |
| Project | Specifications |
| WQ275 I (The upper cover of the turntable is exposed) | WQ275 II | WQ375 IV | WQ375 V (Quick replacement for drilling) |
| Applicable turntabe (in) | 27 1/2 | 27 1/2 | 371/2 | 371/2 |
| Suitable diameter (in) | 2.3/8～9.7/8 | 2.3/8～7.5/8 | 2.3/8～14 | 2.3/8～7 |
| Minimum working load (tons) | 350 | 350 | 500 | 500 |
| Maximum working load (kN) | 3114 | 3114 | 4448 | 4448 |
| Working pressure (MPa) | 0.6 ～ 0.8 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
